Synaps

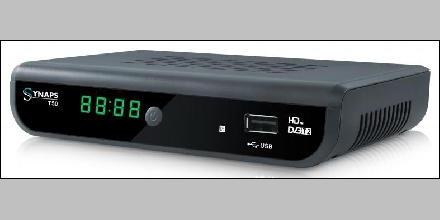

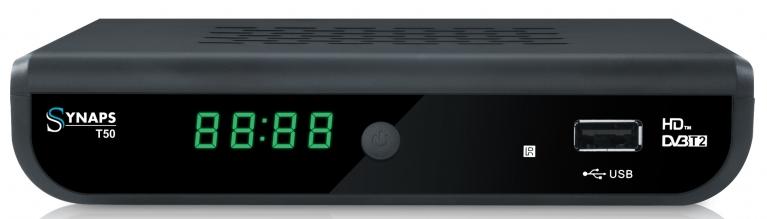

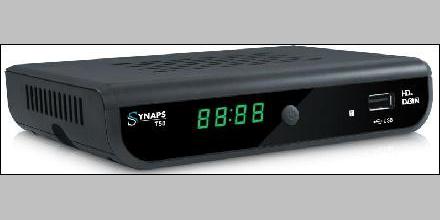

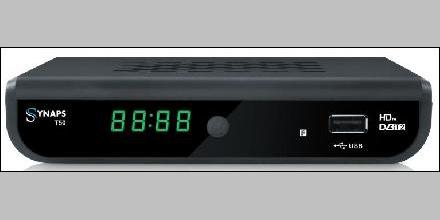

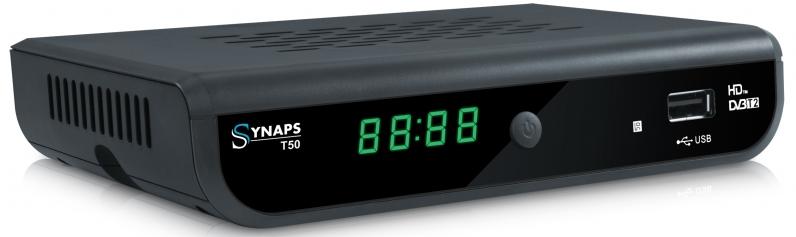

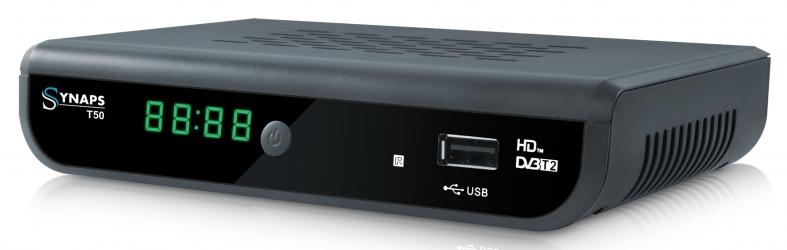

Sinaps T50
Sinaps T50
Procesor
Demodulator
Tjuner

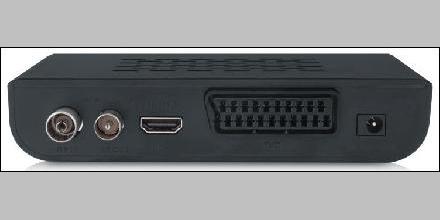

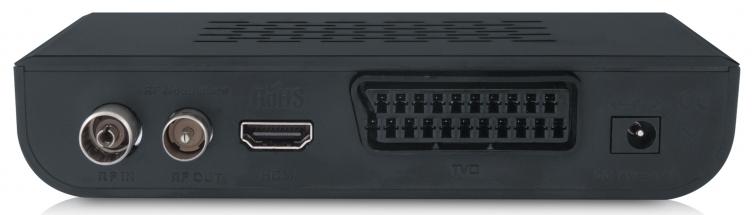

HDMI
SCART
displej
USB x1
MAIN FEATURES
Fully MPEG2 / H.264 Compliant
Free-To Air
RF Modulator
High Speed USB2.0 Connection
Dolby Digital Plus Bit-Stream out via HDMI
Full HD (1080p) Output via HDMI
Logical Channel Number (LCN) Support
Channel Recording to External Storage Devices
TimeShift support
Multimedia Playback Support (MKV, AVI, MPG, MP4, MOV etc...)
Subtitle support
Compact Design
MP3 & JPEG File Support
Software Upgrade support by USB
Electronic Program Guide (EPG)
User Friendly Multi-Language On-Screen Display
RGB/CVBS Video & Stereo Audio Output via SCART
Program Recording from EPG
<0.5W Power Consumption in Stand-By Mode
TECHNICAL SPECIFICATIONS
High Frequency Tuner
Input Frequency Range: 174 ~ 230, 470 ~ 862MHz (VHF&UHF)
Bandwidth: 6, 7 or 8MHz
Input Signal Level: -75~ -15dBm
RF Input Connector: IEC169-2, Female
Input impedance: 75Ω
DVB-T Channel Decoder
Demod standard: Standard DVB-T EN300744
Bandwidth: 6, 7, 8MHz
Demodulation: QPSK, 16QAM, 64QAM
FFT Size: 2K、8K
Code Rate: 1/2, 2/3, 3/4, 5/6, 7/8
Guard Intervals: 1/4, 1/8, 1/16, 1/32
DVB-T2 Channel Decoder
Demod Standard: Standard DVB-T2 EN302755
Bandwidth: 1.7MHz, 5MHz, 6MHz, 7MHz, 8MHz,10Mhz
Demodulation: QPSK, 16QAM, 64QAM, 256QAM
FFT Size: 1k, 2k, 4k, 8k, 16k, 32k
Code Rate: LDPC + BCH 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
Guard Intervals: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128 Video & Audio Decoding
Video decoding : ISO/IEC13818-2 MPEG2 (MP@ML) / MPEG-4 AVC /H.264 Compatible
Video resolution: PAL 720×576/ NTSC 720X480
Video input code rate: 15Mbit/s Max.
Teletext: Support DVB-ETS300472
Audio decoding: ISO 11172-3
Audio Track: Stereo, Left, Right
Audio Sample rate: 32, 44.1, 48KHz
Power Supply
Input Power: 5V DC
Power Consumption: ≤ 8W
Stand-By Power Consumption: 0.5W (max)
Work Environment
Temperature: 0~+40ºC
Humidity: ≤95%
