Synaps THD-2910
Synaps THD-2910
Procesor
Demodulator
Tjuner
HDMI
SCART
USB x1
Digitalni zemaljski prijemnik, DVB-T2, MPEG2/4, Full HD (1080P), FTA, brza i jednostavna instalacija, Media Player (MKV,AVI,MPG,MP3,MP4),
Time Shift, snimanje na USB, pauziranje TV programa, podrška za titlove, EPG, HDMI izlaz 1080, RF izlaz za vezu sa starim televizorima, SCART, Dolby 5.1 channel.
---
Full HD Digital T2 Terrestrial Receiver - Free-To Air with RF Modulator
MAIN FEATURES
For reception of Free-To Air (T2) Digital Terrestrial broadcasts
Easy Installation
High speed USB2.0 connection
Multimedia playback (MKV, AVI, MPG, MP4, MP3, and more...)
TimeShift function - Stop Live Television
Multi-language OSD
Subtitle & Multi-language audio support
Logical Channel Numbering (LCN) function
Electronic Program Guide (EPG)
Teletext Support
Dolby Digital & Dolby Digital Plus Bit-Stream out via coaxial S/PDIF & HDMI

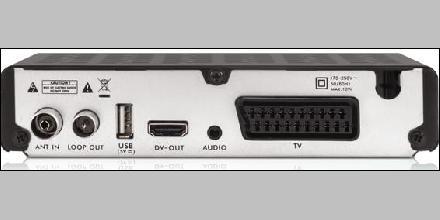

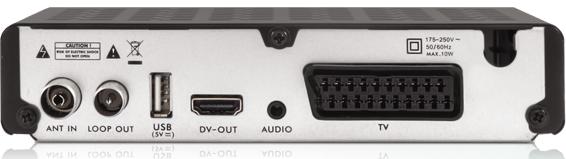

HDMI & SCART & RF Connection
RF Modulator
Full HD (1080p) output via HDMI connection
Easy software upgrades through USB
<1W power consumption in stand-by mode
TECHNICAL SPECIFICATIONS
High Frequency Tuner
Frequency Range: 177.5~227.5MHz - 474~858MHz
Input Impedance: 75Ω
Input Level Range: 64QAM: -78.5dBm ~ -8.75dBm
16QAM: -84.1dBm ~ -8.75dBm
QPSK: -90.3dBm ~ -8.75dBm
ANT Loop-Through: 51MHz~858MHz full Band loop through
Demodulation Mode
Waveform: COFDM Code Orthogonal
Frequency Division Multiplexing)
Demodulation: QPSK, QAM16, QAM64
Transmission Mode: 2K, 8K
Guard interval: 1/4, 1/8, 1/16, 1/32
Code rate: 1/2, 2/3, 3/4, 5/6, 7/8
Video & Audio Decoding
Video decoding: ISO/IEC13818-2 MPEG2 (MP@ML) / MPEG-4 AVS/H.264 Compatible
Video resolution: PAL 720x576 / 720X480 / 1280x720p / 1920x1080p/i
Video input code rate: 15Mbit/s Max.
Teletext: Supported
Audio Track: Stereo, Left, Right, mono
Audio Sample rate: 32, 44.1, 48KHz
USB
USB Port: USB2.0
Format: MKV, AVI, MPG, MP4, TS, MP3, JPG, BMP
Power Supply
Input Power: 230V AC
Power Consumption: ≤ 12W
Max Consumption: ≤ 12 W
Work Environment
Temperature: 0~+40ºC
Humidity: ≤95%
