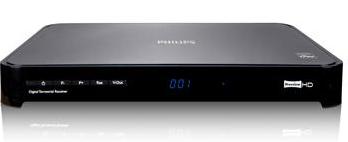

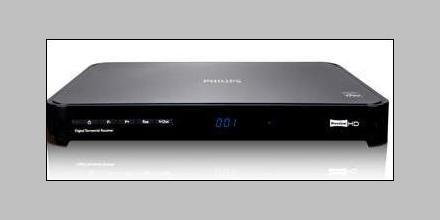

Philips DTR5520
Philips DTR5520
Procesor
Demodulator
Tjuner
HDMI
USB x1
Tuner/Reception/Transmission
Digital TV: Terrestrial, DVB-T2, DVB-T, MHEG with interaction channel
Demodulation type: MPEG-2 DVB compliant, MPEG-4 DVB compliant, Network: MFN/SFN, COFDM 1K/2K/4K/8K/16K/32K
Input frequency range: 474 to 850 MHz
Loop through frequency range: 47-862 MHz
Connectivity
Terrestrial antenna interface: RF in, IEC 169-2, RF out, (bypass) IEC 169-2, 5 V - 50 mA Antenna Powering
Video output � Digital: HDMI
AUX scart out: Audio L/R, CVBS, PAL, RGB
Audio Output � Analogue: Audio L/R (cinch)
Audio Output - Digital: Coaxial (cinch)
USB: USB 2.0 (software update only)
Network connections: RJ45
Convenience
User convenience: Electronic programming guide, Audio Description, Auto resolution adjustment, Auto Power off, Power Switch
Display Type: 4-digit display
Ease of Installation: Autoinstall, Autosearch
Parental control: Child timer, Lock with PIN code
Signal strength indication: Yes
User Interface: Automatic programme list update, Multiple subtitles supported, On Screen Display on TV, Software upgrade over the air, TV and Radio mode, Local software update via USB
Video Decoding
Compression Format: MPEG-2 MP@ML (std definition), MPEG-4 (SD), MPEG-4 (HD)
Resolution: up to 1920 x 1080 progressive
Aspect Ratio: 16:9, 4:3 Letterbox
Copy/content protection: HDCP on HDMI
Video bitrate: Up to 20 Mbit/s
Audio Decoding
Compression format: Dolby Digital, Multi-channel down-mixing, MPEG layer I/II, MPEG4 HE-AAC, Dolby Digital Plus
Sound system: Dolby Digital, Stereo, Mono
Power
Mains power: 230 V, 50 Hz
Power consumption: < 6 W
Standby power consumption: < 1 W
Off mode power consumption: 0.3 W
Dimensions
Carton dimensions (WxDxH): 370 x 235 x 70 mm
Product depth: 160 mm
Product height: 37 mm
Product width: 290 mm
Weight: 0.8 kg
Weight incl. Packaging: 1.4 kg
Accessories
Included accessories: Remote Control, 2 x AAA Batteries, HDMI cable, RF antenna cable, Mains Adapter, User Manual, Quick start guide
