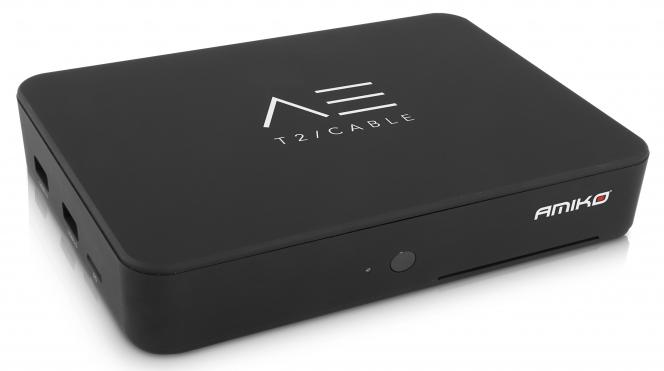

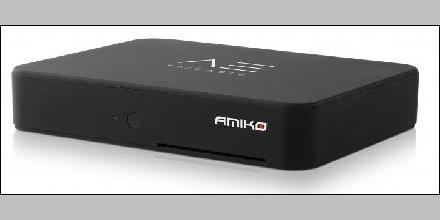

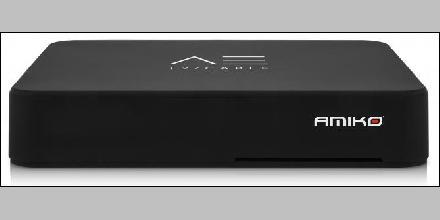

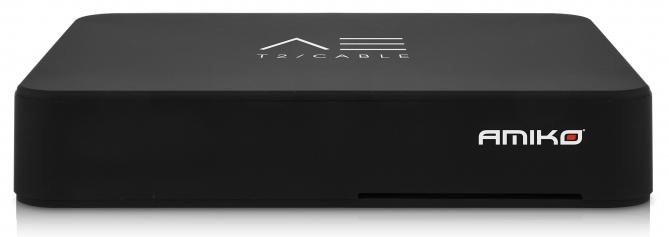

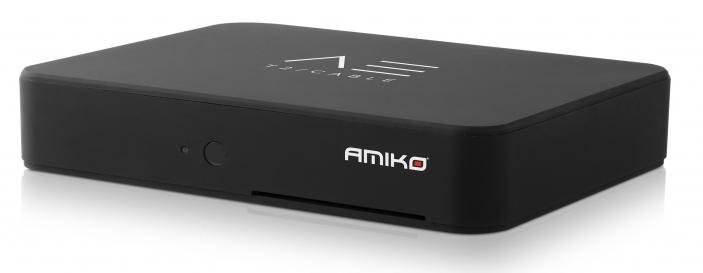

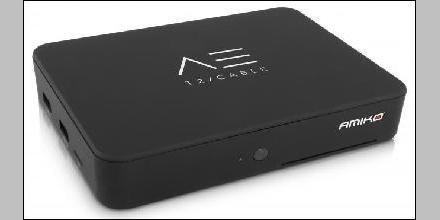

Amiko A3 T2/C
Amiko A3 T2/C
Procesor
Demodulator
Tjuner
HDMI
DC adapter 12V (2A)
S\/P DIF audio
USB x1
AV mini
ethernet
Full HD Digital Smart Set-Top Box & T2 Terrestrial / Cable Receiver
MAIN FEATURES
Full HD Digital Satellite Receiver & Media Player
High Performance Quad Core CPU
Powered by Spark 2 / Android 4.4 Kit Kat
Conax Embedded Card Reader
Fast & Easy Installation
Multimedia Playback from External HDD, USB, Network or via DLNA
Channel Recording to External HDD, USB, or via Network
Miracast & Airplay support
Remote management and channel streaming through local network/internet via Web Interface
Remote management and channel streaming to Android and iOS devices with the Spark Player App
Ethernet Connection
Web Browsing with Adobe Flash Player support
Built-in Wireless-N WiFi connection
USB 3G modem support
VPN Support
Android Games Supported
Download Various Applications and Games for free from the Spark App Store!
Google Play! Store available
One High Speed USB 3.0 & two USB2.0 ports
MicroSD Expansion
KODI Support - Build your own Media Center
Full HD - 1080p Output via HDMI
CVBS Video & Audio output via RCA (Jack type)
DiSEqC 1.0, 1.1, 1.2 & USALS Support
Dolby Digital Bit-Stream out via HDMI & Optical S/PDIF
Easy software upgrades via Internet
Low Power Consumption in Stand-By Mode
TECHNICAL SPECIFICATIONS
System Resources
Main Processor: ARM Cortex A9 1.5GHz Quad Core CPU
Flash Memory: 2MB SPI NOR Flash + 8GB NAND Flash
DDR SDRAM: 1GB DDR3
Tuner & Demodulation
Tuner Type: DVB-T2 / DVB-C
Frequency Range: 48~862MHz
RF Input Level: -80dBm to -20dBm
Antenna power output: DC 5V at max 75mA, Overload protection
Demodulation: COFDM 1K, 2K, 4K, 8K normal and extended, 16K normal and extended, 32K normal and extended
Input Symbol Rate: 1.0 ~ 7.0Ms/s
Constellations: QPSK, 16QAM, 64QAM, 256QAM / Both rotated and non-rotated
Guard Intervals: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128
Code Rate: 1/2, 3/5, 2/3, 3/4, 5/6
Audio / Video Decoding
Input Rate: Max. 120Mbit/s
Aspect Ratio: 4:3, 16:9
Video Decoding: MPEG-2, MP@ML, MPEG-4 Part 10 / H.264, H.265 (8 Bit only)
Video Resolution: 720*480p/i, 720*576p/i, 1280*720p, 1920*1080i/p, 2160p
Audio Decoding: MPEG-1 layer I/II, Mpeg2 layer II, Dolby Digital
Audio Mode: Left / Right / Stereo / Mono
Sampling Rate: 32, 44.1 & 48KHz

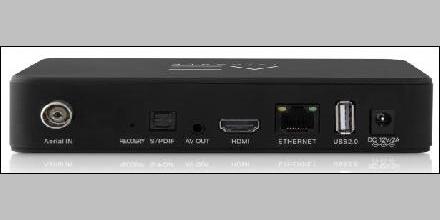

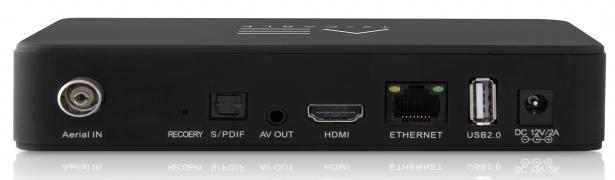

Interfaces
HDMI: Ver 1.4, Type A
AV: Jack Type (CVBS Video & L/R Audio output)
S/PDIF: Digital Audio / Dolby Digital Bit-Stream Output
Ethernet: RJ45 (10/100M)
WiFi: Embedded IEEE802.11 b/g/n (up to 150Mbps)
USB: 1 Type A USB 3.0 port, 2 Type Micro A USB 2.0 ports
SD Card: Micro SD Card reader
CA: Conax Embedded Smart Card Reader

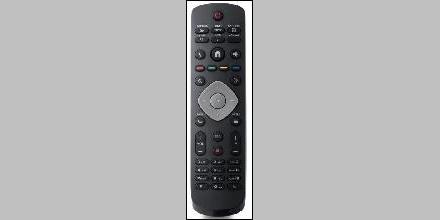

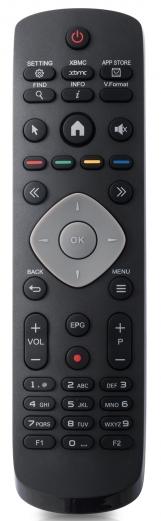

Remote Control
Type: Infrared
Power Supply
Type: External
Input Voltage: 110-230V AC
Output Voltage: 12V DC / 2A
Physical Specifications
Size (WxDxH): 160mm x 120mm x 30mm
Operation Temperature: 0ºC - 45ºC
Storage Temperature: -10ºC - 70ºC
Storage Humidity: 5% - 95% RH (Non Condensing)
